Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Name: Winding Machine Tensioner Servo Tensioner SETC300 Suitable for Wire 003022mm with Cylinder
Brand: Defuli
Price: 1 USD

China Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder wholesale

Brand Name : Defuli

Model Number : SET tensioner

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 1000pcs per month

Delivery Time : 7 working days

Packaging Details : carton with foam

type : servo tensioner

delivery time : 7-10 days

use for : winding machine

winding speed : 5m/s

weight : 3kg

condition : brand new

Contact Now

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Product details of SETC servo tensioner ( for wire 0.03-0.22mm)

SETC-BRD Series with cylinder and the tension pulley is under of front servo tensioner, Which the cylinder is mounted inside the enclosure, It have attenuation fuction. when not turned on the pressure, The tension can be adjusted by the knob and swing arm under the knob to control the tension.

When a certain period in the winding, Thread and other processes require larger back tension, The pressure can be turned on. When the winding machine through a solenoid valve to control the switching valve, the swinging stopper will happen a certain angle in order to get two tension values and avoid disconnection.

Specifications

Model	Tension spring	tension arm	Reference wire diameter scope	Tension scope	Standard configuration
SETC-100-BRD	S2	SA2	0.03-0.06mm	10-25	Arm SA2/SA3, Spring S2/S3/S4
	S3	SA3	0.05-0.09mm	22-65
	S4	SA3	0.08-0.14mm	60-100
SETC-200-BRD	S2	SA2	0.03-0.06mm	10-25	Arm SA2/SA3, Spring S2/S3/S4/S5
	S3	SA3	0.05-0.09mm	22-65
	S4	SA3	0.08-0.14mm	60-150
	S5	SA3	0.14-0.22mm	140-200
SETC-300-BRD	S2	SA3	0.03-0.06mm	10-25	Arm SA3/SA4, Spring S2/S3/S4/S5
	S3	SA3	0.05-0.09mm	22-50
	S4	SA4	0.08-0.14mm	60-150
	S5	SA4	0.14-0.22mm	140-300

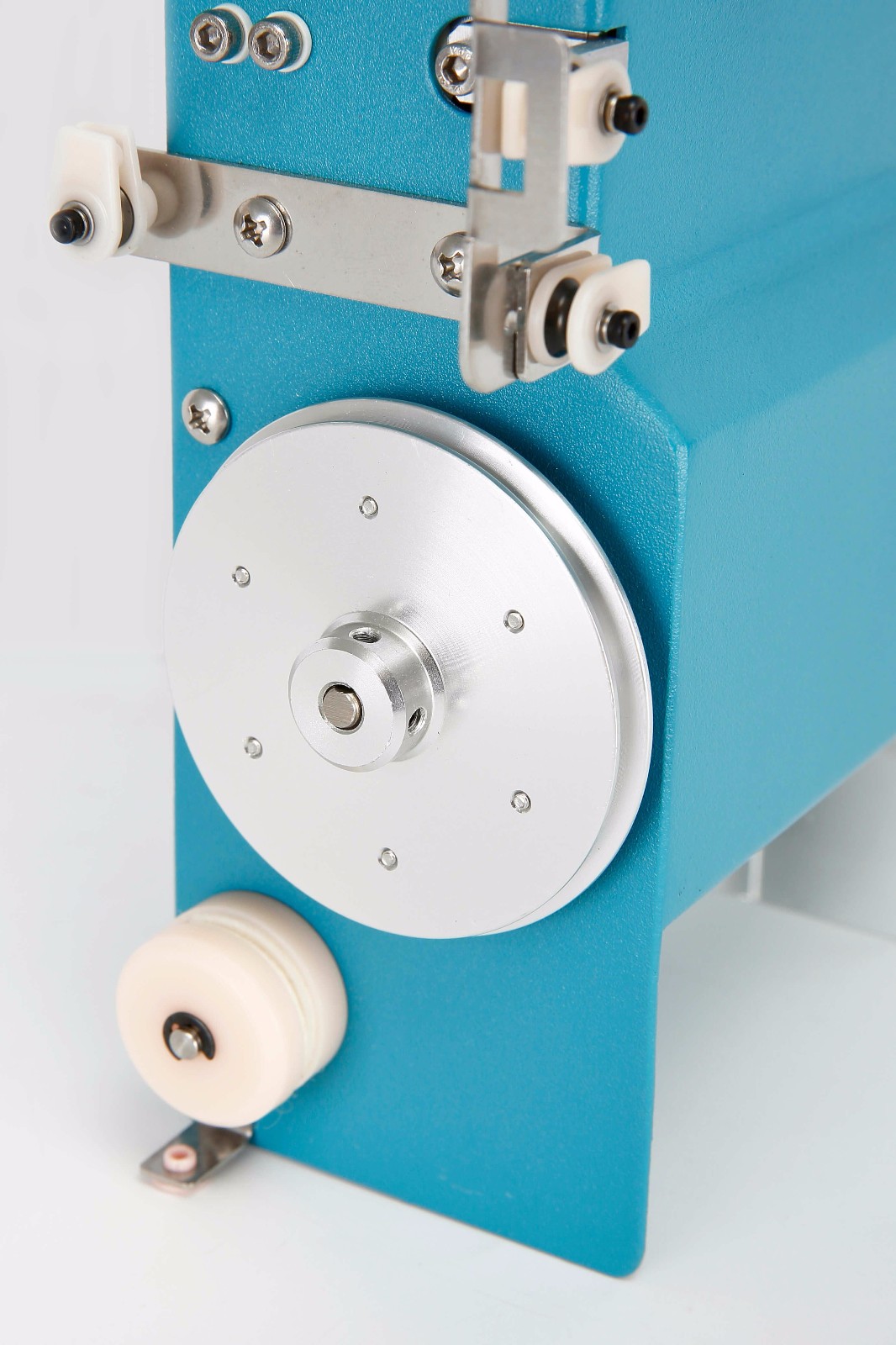

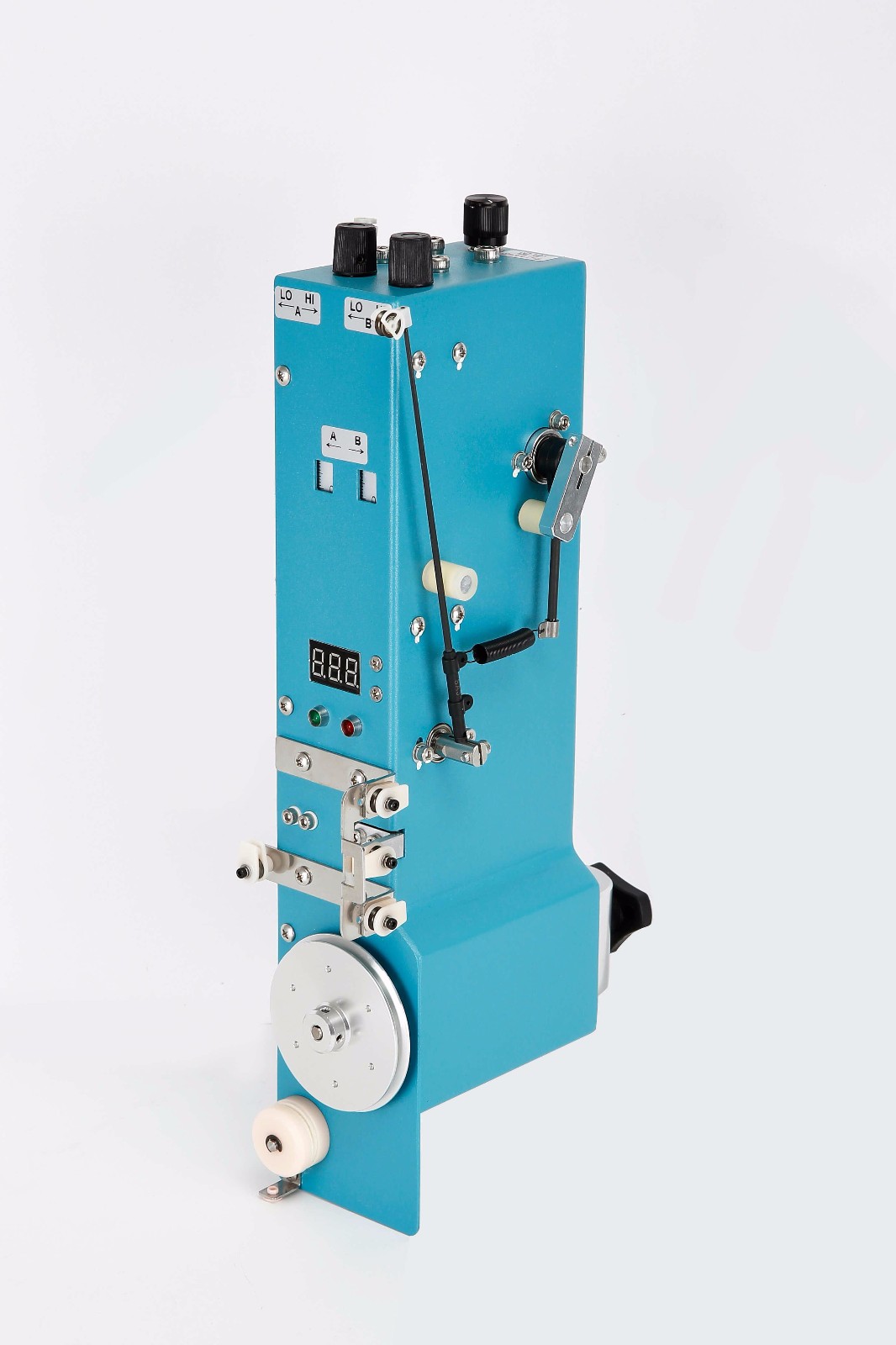

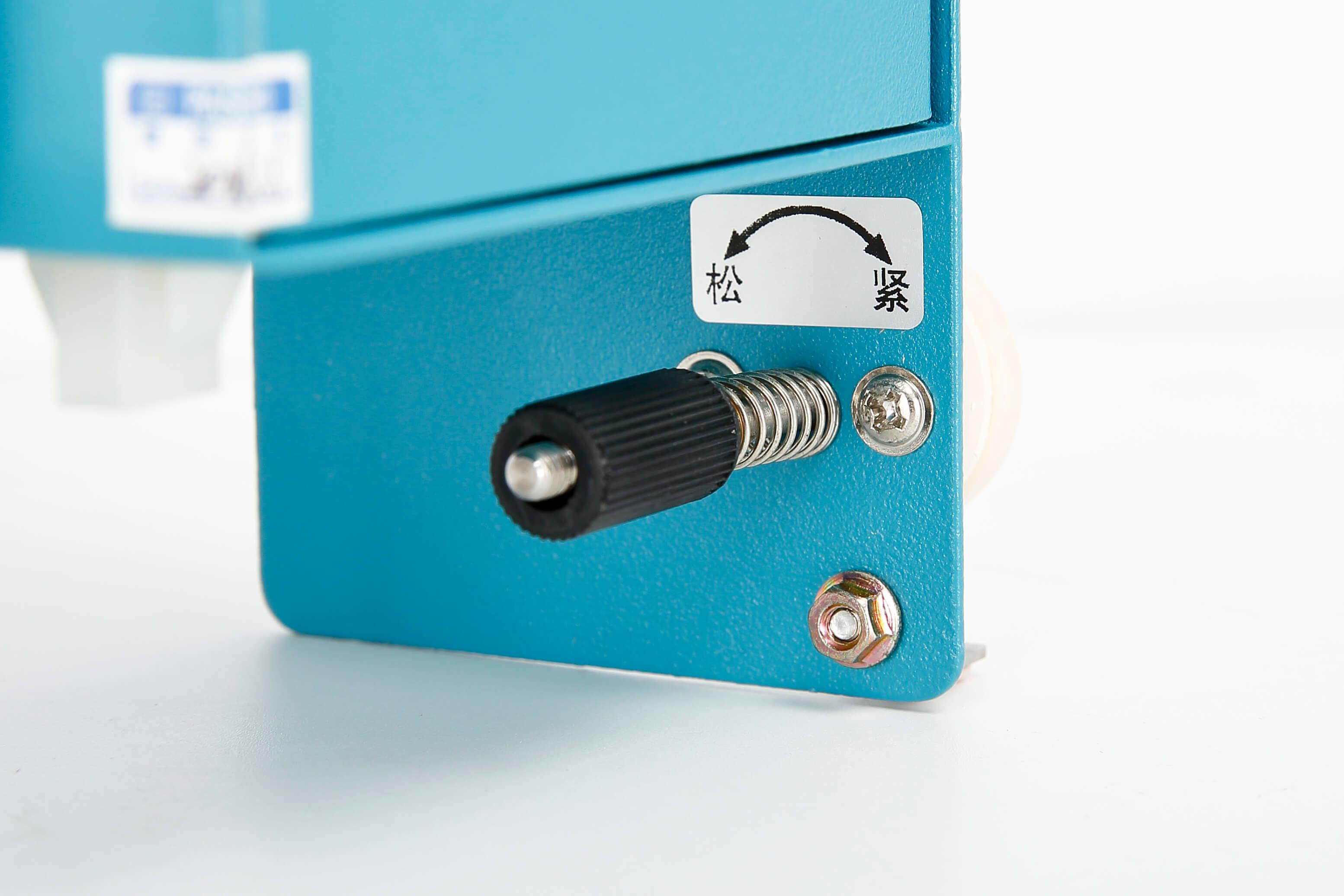

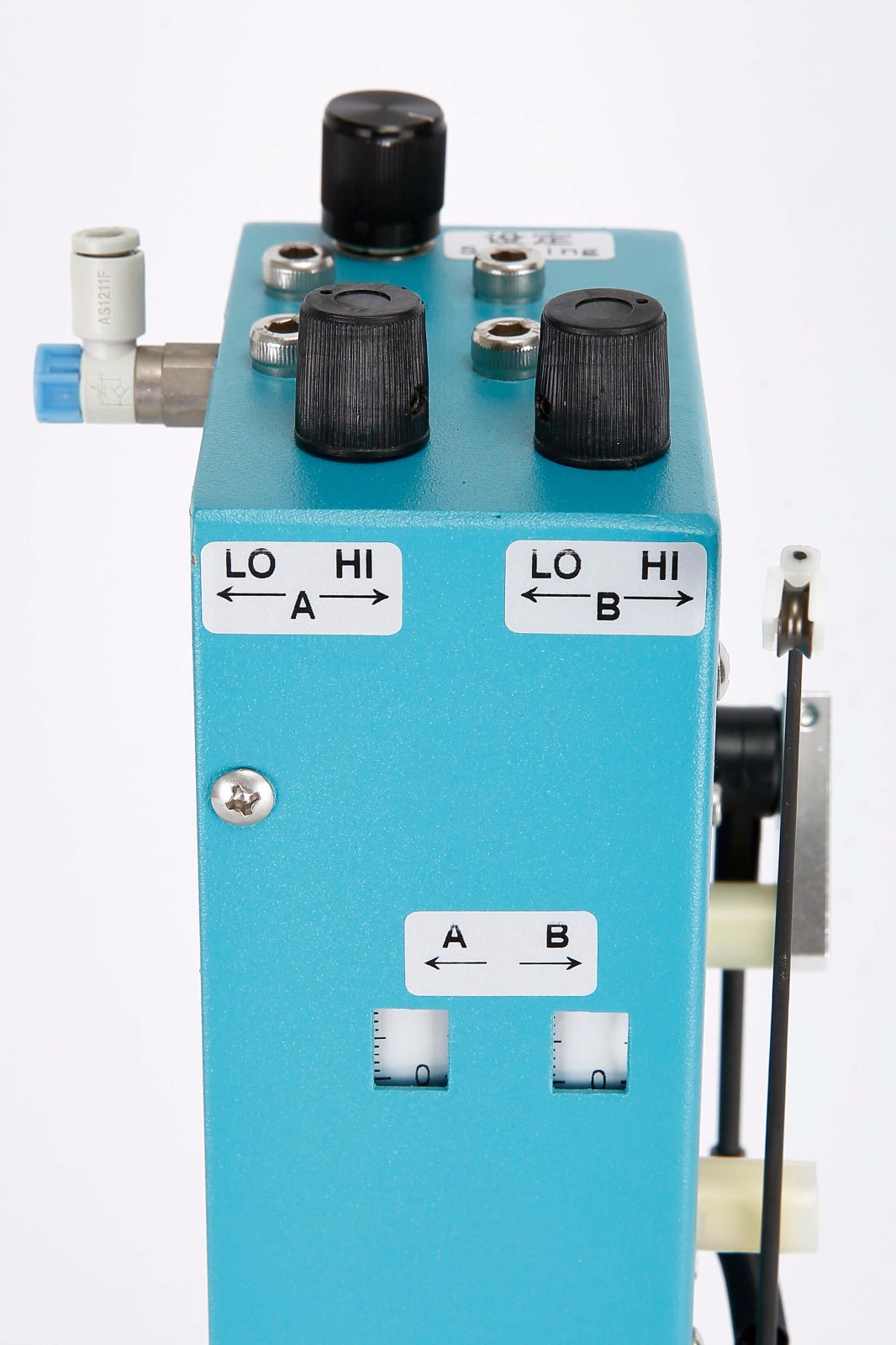

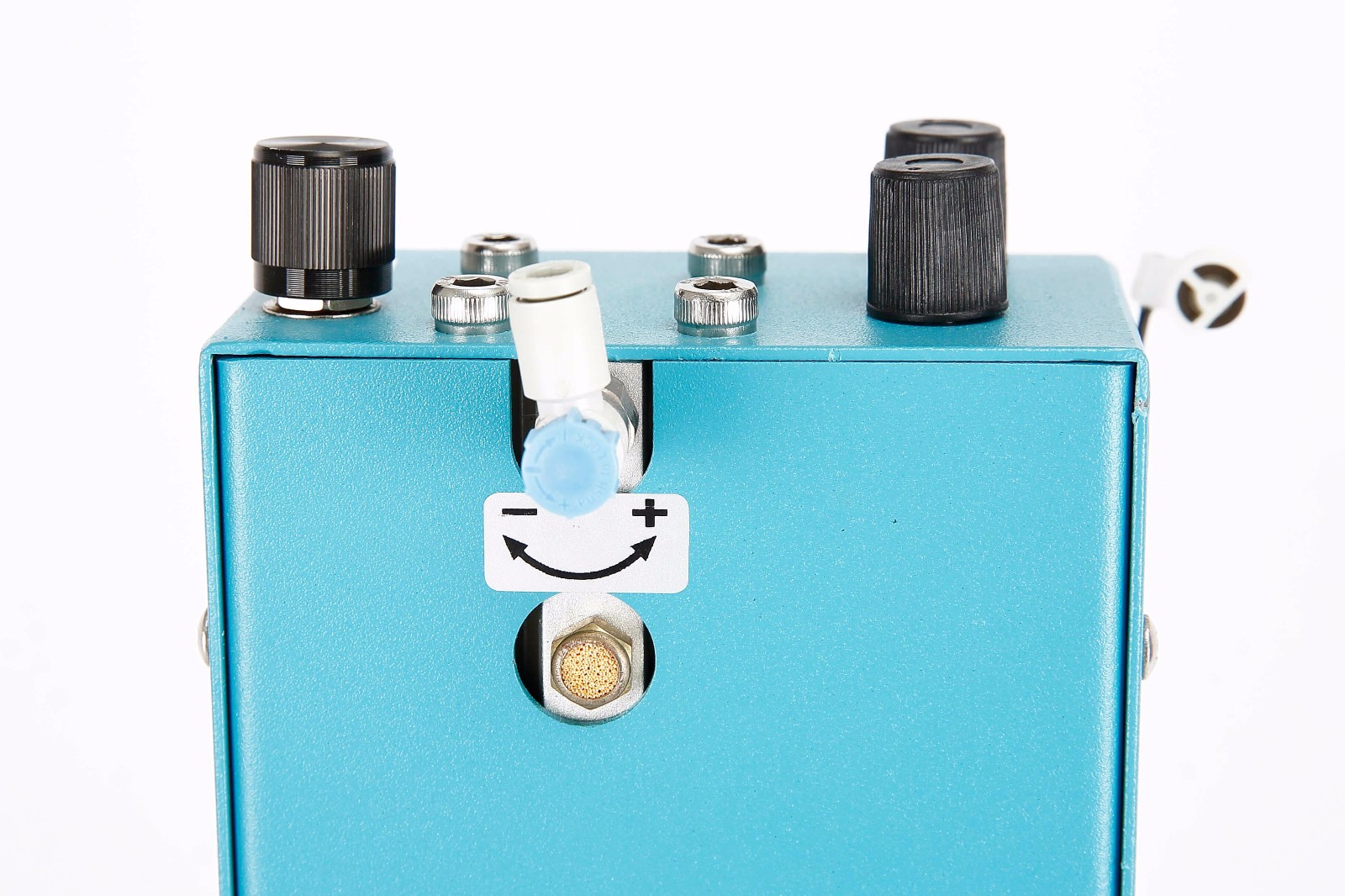

Product image for reference:

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder Images
